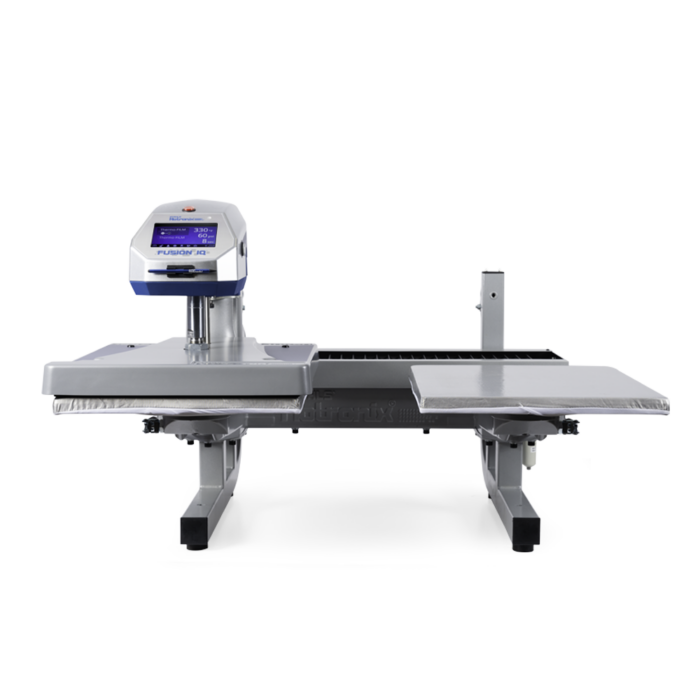

Stahls’ Hotronix Dual Air Fusion IQ 16″ x 20″ Heat Press
*Requires a manufacturing lead time of 2 weeks and must ship freight*
With two heat printing stations, the Dual Air Fusion IQ heat press increases efficiency by allowing threading and layout on one station while the other is being pressed. It’s perfect for high-volume operations and for DTG printing – set one station for pre-treatment, the other for post-curing.
Efficiency reaches new heights with the available optional ProPlace IQ™ upgrade. Upload your artwork to the Hotronix® Cloud and, with a single click, project your design onto the lower platen for precise print placement using its patented projection alignment system. You can either purchase ProPlace IQ together with the press or separately.
*An air compressor (NOT included) is required to operate this heat press. Minimum 1 horsepower and 8-gallon hold tank. Uses 2.6 CFM*
FEATURES
- New Fusion IQ™ controller with larger, higher-resolution screen, plus troubleshooting and self-diagnostic capabilities
- Generate performance reports and manage users online with the new Hotronix Online Portal
- Program each station to work independently or in unison with Position-Based Recipe printing
- Experience unmatched precision, speed, and efficiency with the Dual Air Fusion ProPlace IQ™ patented projection alignment system (sold separately)
- Dual Quick Change 16″ 20″ lower platens (additional platens available separately)
- Full Threadability™ on lower platens: position the garment, rotate, and decorate any area
- Auto Adjust Pressure™: Set four different time and pressure settings that adjust automatically for your recipe
- Digital time, temperature, and pressure readouts
- Operates in full-auto, semi-auto, or manual modes
- Smooth, quiet rodless transmission
- Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
- 120 PSI for heavy-pressure application
- Die pressure cast, corrosion-free base and assemblies
- Requires air compressor (not included) with minimum: 1 horsepower and 8-gallon hold tank. Uses 3.8 CFM
- Proudly made in the USA
SPECIFICATIONS
- Actual Weight: 260 lbs
- Shipping Weight: 410 lbs
- Dimensions: 38″ x 38″ x 26″
- Shipping Dimensions: 45″ x 45″ x 30″
- Watts/Amps: 3500 watts / 15 amps
- Platen Size: 16″ x 20″
- Must have a dedicated circuit breaker
===
===
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they’ll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, this Stahls’ Hotronix heat press machine come with a Manufacturer Warranty that will cover the following from the original date of purchase:
(5) year warranty on major components
(2) year warranty on the circuit board
(1) year warranty on all other components
Stahls’ full warranty policy is available here.
Stahls’ carries all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from repair facilities. If parts and/or accessories are needed at any time during the warranty period, we will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
===
tab_instructions
Stahls’ Hotronix Fusion IQ 16 x 20 Instruction Manual
