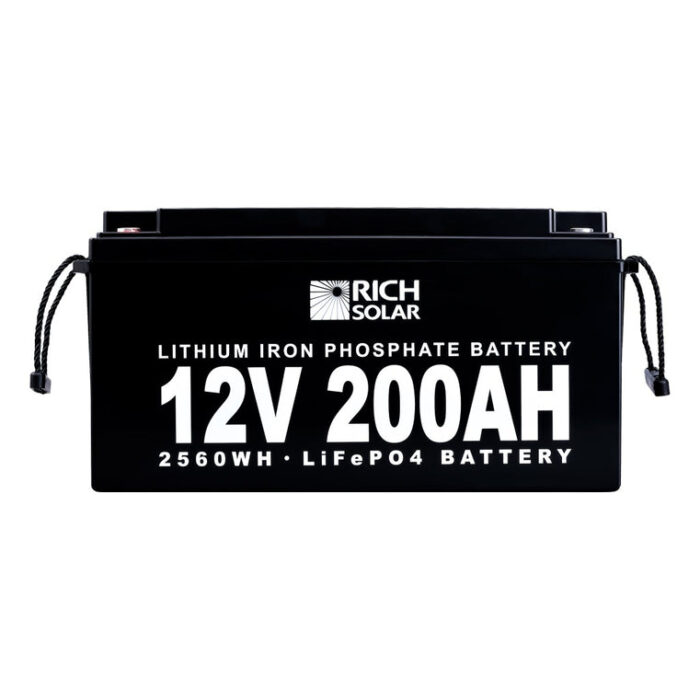

Rich Solar-12V 200Ah LiFePO4 Lithium Iron Phosphate Battery
This Product ships in 2-5 business days.Â
12V 200Ah LiFePO4 Lithium Iron Phosphate Battery by Rich Solar
5,000 Cycles. LiFePO4. 10+ Year Lifespan
When compared to other battery technologies, such as LiFePO4, the RICH SOLAR 12V lithium battery has a much longer cycle life capacity and is easier to maintain. The LiFePO4 technology has improved thermal and chemical stability, which improves battery safety and packs power into a small and lightweight footprint. It easily fits in the same space as your existing 12V battery, making it ideal for RVs, boats, commercial vehicles, off-grid backup power, and more. It is not intended to replace starting batteries.
Features:
- Extremely high number of charge/discharge cycles
- 20 Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Over charging or discharging protection.
- Over current & short circuit protection.
- High & low temperature disconnects
- Charge Voltage: 14.4V
- Max Charge Current:Â 100 A
- Max Discharge Current:200 A
- Battery Dimensions: 19.0″L x 6.7″W x 9.5″H
- Weight: 42.5 lb
- Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity
BMS Safety Protection
- Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient removable carry handle
- Lightweight
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
12V 200Ah LiFePO4 Lithium Iron Phosphate Battery
Specifications
Electrical Specifications
- Nominal Voltage: 12.8V
- Nominal Capacity(at .5C, 77°F): 200Ah
- Minimum Capacity (at .5C, 77°F): 190Ah
- Expected Cycle Life: >3000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Operating Specifications
- Charge Method: Smart charger, constant current, constant voltage
- Operating Voltage: 12.8 V
- Capacity: 200 Ah
- Energy: 2560 Watt Hours
- Charge Voltage Range (Max 14.6V): 14.4 -14.6V
- Continuous Charge Current: 100A
- Continuous Discharge Current: 200A
- Over Voltage Shutdown: 15.6 +/-0.2V
- Discharge Cut-off Voltage: 8V =/- 0.5V
- Self Discharge (stored at 50% SOC): < 3%/month
- Waterproof: IP65
Temperature Performance
- Charge Temperature: 32° F to 140° F
- Discharge Temperature: -4° F to 140° F
- Storage Temperature: -4° F to 140° F
- BMS High Temperature Cut-off: 149°F
- BMS Low Temperature Cut-off: 32°F
Physical Specifications
- Battery Dimensions: 19.0″L x 6.7″W x 9.5″H
- Weight: 42.5 lb
- Group Size: 62
- Battery post size: 5/16″
BMS Operation
Over Charge Protection
- Over charge detection voltage: 3.9 +/- 0.05V
- Over charge detection delay time: 0.96 – 1.4s
- Over charge release voltage: 3.80 +/-0.05V
- Maximum charge voltage: 3.65 +/-0.05V
Over Discharge Protection
- Over discharge detection voltage: 2.0V +/- 0.05V
- Over discharge detection delay time: 115-173ms
- Over discharge release voltage: 2.3V +/- 0.10V
- Over Current Protection Over current detection delay time: 9 +/- 2ms
- Over current release condition: Cut load
Polarity Reverse Protection: Yes
Short Circuit Protection: Yes
Warranty
3Â Year Manufacturer Defect
