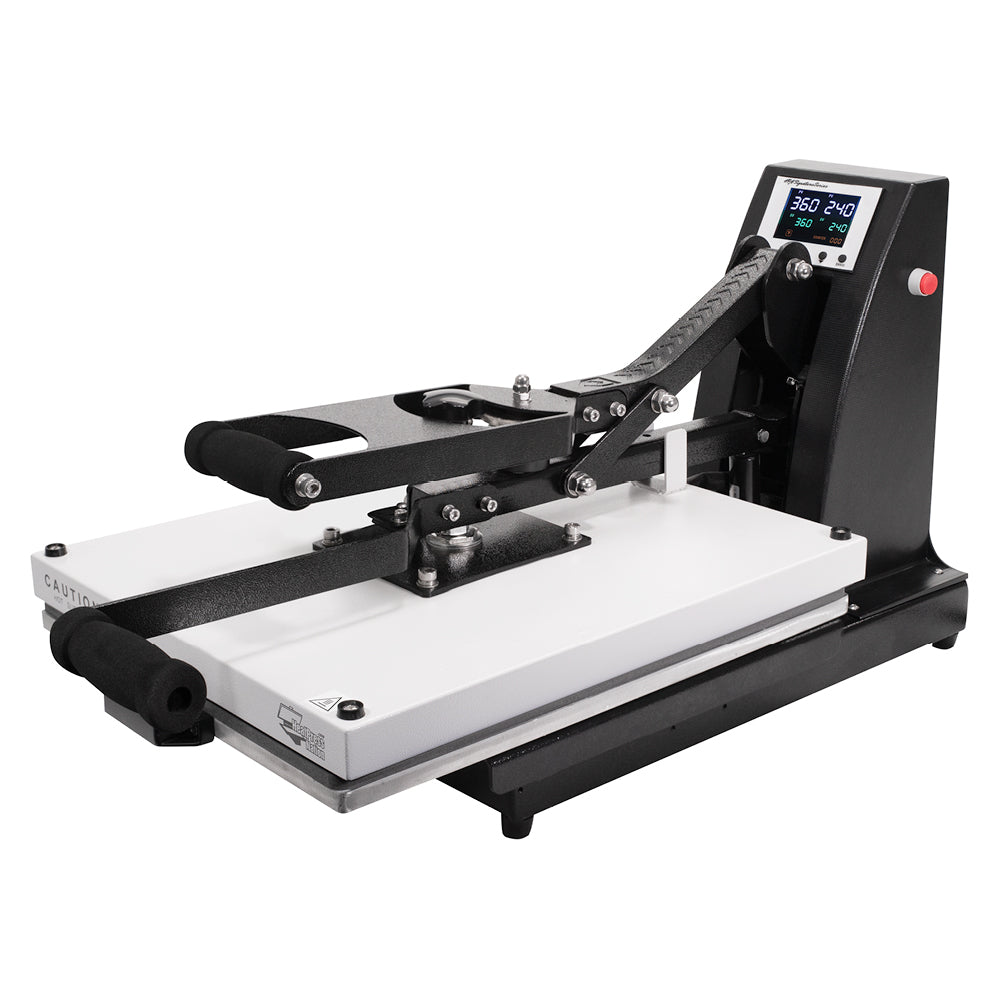

HPN Signature Series 16″ x 20″ Auto-Open Slide Out Drawer
Introducing the HPN Signature Series! The quality and reliability of the HPN brand heat presses have been taken to a whole new level with the Signature Series. Featuring an auto-opening electromagnet system, this robust feature allows the machine to automatically release the pressure when the timer hits 0.
This HPN Signature Series Auto Open Heat Press is packed with a surplus of features that surely defines why we have coined this our Signature line of heat press machines. With the inclusion of the unique bottom slide-out drawer, an enhanced time/temperature gauge, and the aiding gas shock opening mechanism, our Signature Series line of heat presses has almost certainly become a staple in the industry and a favorite among the heat transfer community. Designed to be user-friendly, high caliber and competitively priced, the HPN Signature Series line of heat press machines are sure to become a favorite of business owners and heat transfer enthusiasts everywhere.
FEATURES
|
Magnetic Auto-Open Release: Activated magnetically, the auto-open release feature on the HPN Signature series allows the heat press to open automatically when the timer reaches zero, giving your time to focus on other aspects of your project while your material transfers. |
|
|
Gas Shock Opening Mechanism: The HPN Signature Series provides high pressure with smooth and easy opening and closing action. The powerful clamp mechanism is now complemented by a gas shock opening mechanism, making it one of the most comfortable to operate manual heat presses on the market today. |
|
|
Drawer Style Lower Platen: The drawer style lower platen allows you more space to lay down your transfer material without having to put your hands directly underneath the heat. This feature provides you with increased safety while maintaining the compact nature of a clamshell heat press. |
|
|
Upgraded Time/Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Signature Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds for it reaches zero to prevent overheating of your material. |
- Improved heating element for quicker heat up
- Opens approximately 50 degrees
- Thick items capable (up to 1/2 inch thick)
- Full pressure range knob
- Reinforced structure to ensure high pressure
- Adjustable low to high-pressure clamp
- Solid steel welded framework
- Complete commercial business grade
- Dual Fuse Protection
- Secondary Leverage Handle
- 16″ x 20″ Baked-on, Non-Stick Coated Heat Platen
- Digital Temperature Control
- Digital Automatic Timer
SPECIFICATIONS
- Heat Press Style: Auto-Open/Clamshell/Drawer
- Heat Press Base Dimensions: 31″ x 16″ x 34″ (D x W x H in open position)
- Heating Element Dimensions: 15.77″ x 19.72″
- Gauge Reading: Fahrenheit or Celsius degree measure
- Voltage: 110V
- Power Rating: 1600W/14 Amps
- Maximum Temperature: 400º F
- Time Range: 0-999 Seconds
- Product Weight: 103.6 lbs
- Shipping Weight: 116 lbs
- Shipping Dimensions: 37.4″ x 21.7″ x 21.3″
===
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they’ll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, all HPN Signature Series heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
EXTENDED WARRANTY
Protect your investment by extending the manufacturer’s parts and service warranty.
HeatPressNation’s MyExpert Protection keeps your device covered when bad luck happens. We’ll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.
PLANS
- 1 Year Total Coverage – Included with purchase
- 2 Years Total Coverage – $49.99
- 3 Years Total Coverage – $79.99
- 4 Years Total Coverage – $99.99
Add “MyExpert Protection” when adding your product to the cart
===
