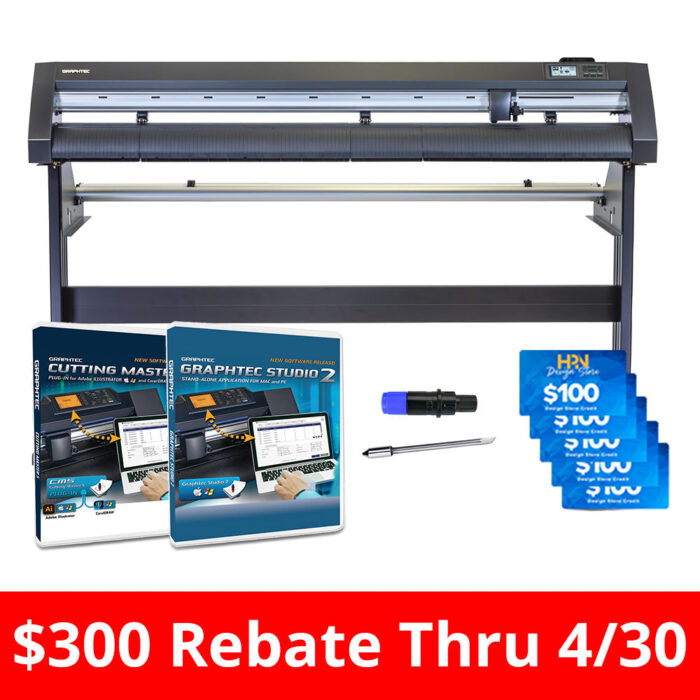

Graphtec CE8000-130 50″ Desktop Vinyl Cutter
*From now through 4/30, receive a $300 rebate when you purchase this cutter. Details will be shared after the product ships.*
The Graphtec CE8000 Series is the perfect solution for those looking to increase production with greater efficiency for signage graphics, print & cut graphics, pop & packaging, automotive markets and many more. The rigidity has been enhanced compared to the previous model CE7000, and its feeding and cutting quality have also been improved. Wireless LAN has been newly available to enhance convenience and flexibility.
What’s Included:
- Graphtec CE8000-300 50″ Vinyl Cutter
- Vinyl Cutter Stand
- Vinyl Roll Feeder
- Cutting Master 5 Plug-in for Adobe Illustrator (PC/MAC) and CorelDRAW (PC)
- Graphtec Studio 2 Design Software (PC/MAC)
- Magnetic Storage Compartment
- CB09UB Blade and PHP33-CB09N-HS Blade Holder
- 500 HPN Design Store Reward Credits
- Access to download up to 200+ Digital Designs for commercial use!
Features:
|
NEW TOUCH PANEL: with mechanical keys gives users more flexibility with its Blind Touch Operation enabling the operator to keep eyes on media while feeding continually. |
|
|
NEW Wireless LAN: The CE8000 includes a wireless connection module which improves flexibility of installation locations. |
|
|
NEW Tool Holder: Improved design makes it easier to change tools and blade position by sliding the stopper forward and back. |
|
|
Media Set Assist: Suction fans help to prevent media lift and shift when feeding |
|
|
Data Link Barcode System: allows cutting different jobs with different data sequentially. By reading the Graphtec barcode, the CE8000 automatically detects its linked data from a PC or USB Drive.
|
|
|
Advanced Registration Mark Sensing: system delivers precise Print & Cut results using sensors to detect registration marks and perform axis alignment. Efficiency boosting functions improve productivity for Print & Cut applications such as labels and decals. |
- Improved tool holder design makes it easier to change tools and blade position by sliding the stopper forward and back.
- Job Completion and Error Notifications can be sent to users by email
- Separate Tool Positions for contour and die cutting ensure the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
- Expanded Contour Cutting Area expands the Print & Cut area to include objects outside of the registration marks. Production efficiency is enhanced and media waste is reduced.
- Revisions to the menu are more intuitive and efficient utilizing the New Touch Screen Feature with icons that allow for easier operation.
- Check and download firmware via GS2 or CM5 and install directly using a USB Flash Drive or USB cable (not supplied).
Specifications:
- Configuration: Grit-rolling Plotter Driven by a Digital Servo Motor
- CPU: 32bit
- Buffer Memory: 2MB
- Maximum cutting area (W x L): 50” x 164’
- Tracking: 50”× 79” without option media basket, 49”× 16.4’ with option media basket
- Mountable Media Width: 2” to 54“
- Maximum Cutting Speed: 39″/s @ 45º direction
- Maximum Cutting Force: 4.41N (450gf)
- Number of Push Rollers: 3 Rollers
- Specifiable Speeds (cm/s): 1 – 10, 15, 20, 25, 30, 35, 40, 45, 49, 50, 55, 60, 64
- Maximum Media Weight: 37 lbs
- Minimum Character Size: 5 mm (0.197”.) alphanumeric Helvetica med. Font *1
- Barcode \ Data Link: Yes
- Repeatable Accuracy: 0.1 mm or less / in unit of 2 m (Designated film and cut conditions)
-
Interface:
- USB 2.0 (Full Speed)
- Wireless LAN: IEEE 802.11b/g/n
- Ethernet:10 BASE-T/100 BASE-TX *5
- Programmable Resolution: GP-GL™ mode: 0.1 /0.05 / 0.025 / 0.01 mm • HP-GL *3 : 0.025mm
- Mechanical Resolution: 0.005 mm (5μm)
- Resident Command Sets: GP-GL/HP-GL *3 (Control panel switching, Auto switching)
- Condition Settings: Dual Configuration – 2 User Settings with 8 Separate Condition Settings per User
- LCD Display: Touch Panel Screen (240-dot x 128-dot)
- External Dimensions (W x D x H): 65” x 32” x 42.3”
- Weight (approx): 106 lbs
- Compatible Media: Mono-vinyl chloride media, fluorescent media, and reflective media up to 0.25 mm thick (Excluding high-intensity reflective film)
- Has Contour Cutting: Yes
===
tab_warranty
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they’ll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, Graphtec CE8000 Vinyl Cutters come with a 2 Year Manufacturer Warranty from the original date of purchase. Warranty service does not include the cost of freight of the item to or from repair facilities.
For warranty claims, we may need to involve the official Graphtec team depending on the reported issue.
