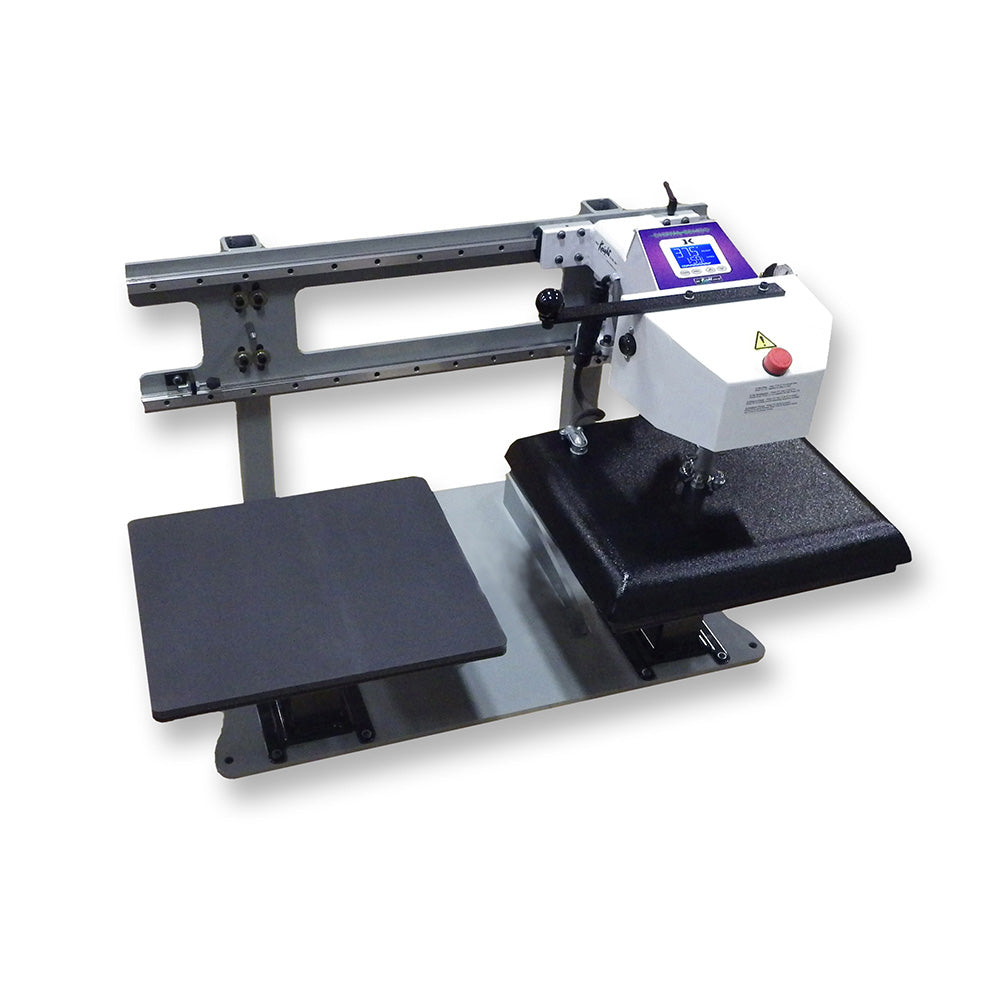

Geo Knight DC16APT Twin Automatic Digital Combo 14 x 16 Swing-Away Press
*Must ship freight*
The Digital Combo DC16APT is an air-operated, Twin-Station, Automatic 14 x 16 heat press with optional interchangeable heat platens and tables. The smooth automatic pressing and pushbutton activation provides a productive, fatigue-free operation in a dual-station high production layout! With just a few fingers the top head effortlessly glides side-to-side, increasing throughout and operation productivity.
With all the same features and possibilities as the automatic DC16AP, with a twin-station high production layout, the DC16APT is the ideal high-volume pressing solution.
FEATURES
- Automatic air-operated pressing
- Threadable, dual interchangeable bottom tables
- 14″ left to right x 16″ – deep orientation (opposite DC16AP)
- Fully digital temperature control 32°-600°F range
- Automatic digital timer and dual pre-press timer
- Air regulator and gauge 20-100 PSI range (compressor req)
- Total applied force of 800lbs max
- Optional, Interchangeable heat platens and tables
- Solid Steel welded framework
- SuperCoil-Microwinding™ heater technology
- Accommodates materials up to 2″ thick
- Temperature readout accuracy +-2°F – can show °C or °F
- 70 programmable presets
- Records number of pressing cycles done
- Teflon-coated 3/4″ thick heat platen
SPECIFICATIONS
- Air Compressor Required(min): 5 gal,1/2cfm, 100psi
- Electrical: 1500W/12A/120V
- Weight: 350 Lbs
- Dimensions: 36″ H x 32″ W x 42″ D
===
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they’ll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, Geo Knight, the manufacturer, offers the following warranty on this product:
- Lifetime warranty on heat platen
- 5-year warranty on frame
- 3-year warranty on controller
- 1-year warranty on parts
===
