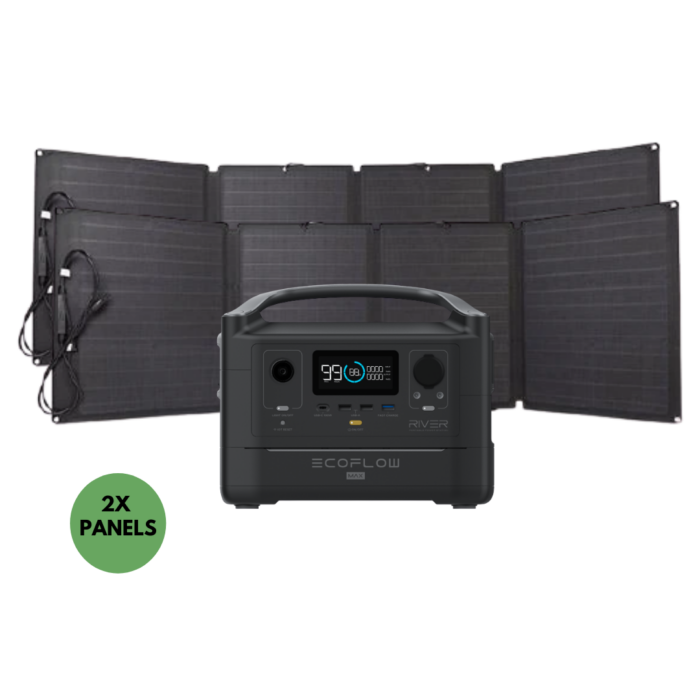

EcoFlow RIVER MAX PORTABLE POWER STATION + 2x 110W SOLAR PANEL
RIVER MAX PORTABLE POWER STATION + 2x 110W SOLAR PANEL by EcoFlow
All new! RIVER Max Portable Power Station is perfect for outdoor and indoor power backup! It is compact and portable which you can bring wherever you want. Has a capacity of 3 x 600w AC outlets and a capacity of 576Wh. Recharge from 0% to 80% within an hour, Compatible with 80% home appliances and fits your needs now and later. It can power up almost all of your appliances at home. Easy to carry and very efficient.
RIVER Max User Manual
110W Solar Panel User Manual
PRODUCT OVERVIEW
Compact and portable, the EcoFlow RIVER Max Portable Power Station series is an ideal recreational power that provides you the accessibility to handy wall outlets. The RIVER Max Portable Power Station series is the perfect companion for camping, over-landing, tailgating, boating, etc. Feel free to attach and detach the Extra Battery to meet your needs.
- POWER WHEREVER YOU GO: Portable solar power generator + Extra Battery that gives you reliable power for outdoor adventures, indoor use, and emergency situations.
- RECHARGE FROM 0-80% WITHIN 1 HOUR: EcoFlow X-Stream Charge technology recharges the power station from 0-80% within one hour, which is one of the fastest recharging rates on the market. Quiet Charging can be enabled from the EcoFlow app.
- POWER UP TO 10 DEVICES SIMULTANEOUSLY: EcoFlow’s X-Boost technology allows you to increase the AC output to 1800W, which lets you power up to 80% of essential devices like kitchen appliances, home appliances, and DIY tools.
- MODULAR DESIGN: The unique modular design gives you the freedom to adjust the power and portability of the RIVER 600 within seconds. The Extra Battery doubles the capacity from 288Wh to 576Wh during situations when you need more power. You can also detach the Extra Battery easily for more portability during traveling, outdoor adventures, or any application where you need to power devices on the go.Â
- 3 x 600W AC OUTLETS AND 576Wh CAPACITY: The EF RIVER 600 MAX has 3 AC outlets and a capacity of 576Wh, providing multiple users with incredible power for all of your favorite devices.
What EcoFlow RIVER MAX PORTABLE POWER STATION can Power?
The EcoFlow RIVER MAX features the RIVER 600 power station plus an Extra Battery, which doubles up the battery capacity and offers you reliable, portable, and easy-to-access power wherever you are.
Specifications of RIVER 600Â MAX PORTABLE STATION
General Info
- Net Weight: *17lbs (7.7kg)
- Dimension: 11.3 x 7.3 x 9.96 in (28.8 x 18.5 x 25.3 cm)
- Charge Temperature: 32-113°F +/- 5°F (0-45°C +/- 3°C)
- Discharge Temperature: -4-140°F +/- 5°F (-20-60°C +/- 3°C)  Â
- Color:Â Cyber BlackÂ
- Warranty: 24 months
Battery Info
- Capacity:Â 288Wh (28.8V)
- Cell Chemistry:Â Lithium-ion
- Shelf Life: 1 year (after fully charged)
- Cycle Life: 500 Cycles (80%+)
- Management Systems: BMS, Over Voltage Protection, Overload Protection,Â
Over Temperature Protection, Short Circuit Protection Low-Temperature Protection, Low Voltage Protection, Â
Overcurrent Protection - Testing and certification:Â UL CE FCC RoHS
Input PortsÂ
- AC Charge Input Power: X-STREAM Charge 500W max
- AC Charge Input Voltage :Â 100-120Vac(50Hz/60Hz) International Version 220-240Vac(50Hz/60Hz)
- Solar Charge Input:Â 200W 10-25V DC 12A max
- Car Charger:Â 12V/24V DC 10A max
Output Ports
- AC Output (x3):Â 600W (Surge 1200W) total,120Vac( 50Hz/60Hz)Â
- USB-A Output (x2):Â 5V DC,2.4A,12W Max, per port
- USB-A Fast Charge (x1):Â 5V DC,9V DC,12V DC,2.4A,28W Max
- USB-C Output (x1): 5V DC,9V DC,12V DC,15V DC,20V DC,5A,100W Max
- Car Power Output (x1) :Â 136W, 13.6V DC, 10A Max
- DC5521 Output (x2):Â 13.6V DC, 3A Max, per port
CHARGING
- Charge Method: AC Wall Outlet, 12V Car Adaptor, Solar Panel
- Full Recharge Time: 1.6 Hours (AC), 5 Hours (12/24V Car Adaptor) and 3-6 Hours (Using 2x110W Solar Panels in parallel with full sun)
Specifications of 110W Solar Panel
General Info
- Unfolded Dimensions : 20.2*62.5*0.8 in (51.4*158*2.0 cm)
- Folded Dimensions: 20.2*16.5*0.8 in (51.4*42*2.0 cm)
- Weight: 13.2 lb(6KG)Â Â Solar Panel 8.8lb (4KG)
- Warranty: 12 Months
- Rated Power:Â 110W(+/-5W)*
- Efficiency: 21%-22%
- MC4 Solar Port to XT60: 80V(max), up to 10A (max)
- Open Circuit Voltage:Â 21.7V(Vmp18.5V)
- Short Circuit Current:Â 6.3A(Imp 6.0A)
- Cell Type:Â Monocrystalline SiliconÂ
- Chainable: Yes, EF DELTA up to 400W, RIVER 370 only one each port   Â
X-Boost Smart Algorithm
With the full sine wave AC output of 600W (up to 1800W when the X-Boost mode is on), the RIVER can power most kitchen appliances and tools. It’s recommended to use X-Boost for devices within 1200W for a better user experience. With the APP, you can upgrade to the latest firmware to enjoy the best performance of X-Boost mode. The RIVER 600 will give you the freedom to enjoy AC outlets everywhere in the house, or at your outdoorsy adventures.
Faster Recharging Speed
The EcoFlow’s X-Stream technology redefines the power station’s speed of charge ability, eliminating the bulky adapters. With the built-in smart inverter, RIVER delivers a fast recharging performance. Only need to plug into a regular wall outlet for 1.6 hours, you will have a 100% charged unit.
The power that Grows with You
With the modular design and the Extra Battery, you can easily expand the capacity of the RIVER from 288Wh to 576Wh.
RIVER: Lightweight and portable, perfect for a weekend trip or tailgating events;
RIVER + Extra Battery: Compact and reliable for outdoor adventures or RV/van usage. Â
Â
Power 10 Devices Simultaneously
RIVER fits many types of ports you’ll need to charge all your devices. The 100W USB-C is perfect for charging laptops while the full sine wave AC outlets give you more flexibility in charging heavy-duty devices. With the informative EcoFlow APP, you can control and monitor the unit on your hands.
Sustainable Solar Charging
The smart MPPT inside of the RIVER enables it to recharge quickly through solar power at a 200W maximum loading scale. With two 110W solar panels (IP67 waterproof) connected in parallel under a direct, perfect sunlight condition, the RIVER 600 can be fully charged from 1.6 to 3 hours, giving you the freedom to enjoy clean, sustainable power from nature.
Â
Compact and Portable
With the rugged easy-to-carry handle, the 11lbs RIVER is perfect for outdoor use. Slightly larger than a toaster, it can easily fit in the trunk of a minivan, or anywhere in the house whenever you need an AC power source. You can always be prepared for the next adventures, anytime, with this reliable, portable power station.Â
Â
Highlights of 110W Solar Panel
