DTF Station 13″ Prestige R2 Pro with 13″ Shaker Bundle
Unleash your printing potential with the DTF Station Prestige R2 Pro DTF Printer – true production printing at a value and size you can’t find anywhere else. This 13″ powerhouse boasts dual Epson i1600 print heads for enhanced reliability and vibrant, crisp prints, alongside a suite of features for easy use and maintenance. Elevate your printing today.
With a printing speed of 30-35 sq. ft. per hour and the powerful, this compact printer is perfect for intermediate customers looking for professional results.
The Miro 13 Max is DTF Station’s powdering and drying solution for every A3 and A4 sized DTF workflow.
Due to more optimized and even heating, power consumption has dropped to 1100W, making for a more cost-efficient and accessible powdering solution. Plus, the built-in air purifier on the Miro 13 Max ensures a safer, more eco-friendly working environment that saves space taken by an external air purifier.
*Available for local pickup in California, call for availability*
Features and Benefits:
- Speed: 30-35 sq. ft./hour, Production Level Resolution (720×1200)
- White Ink Management System (WIMS): Timed white ink stirring system to circulate and maintain white ink inside the printer
- Passive Auto-Cleaning: When the printer is left on, it will automatically maintain and clean the printhead every 4 hours
- Active Auto-Cleaning: During set intervals (even during printing), the printer can stop to clean the printhead
- Head Strike Sensor: Helps prevent damage to the printhead
- 1 Liter Bulk Ink Cartridges: More ink for all your printing needs
- Auto Ink Alert System: Informs the user when ink is running low
- Automatic Film Sensor: If film runs out/is not detected, stops printing
- Size: Production power and quality in a desktop size
- Great for Intermediate Users: Perfect balance of power and affordability
- Easy Access/Repair: Intuitive, labeled board design and connections for easy access and repair
- Built-in air purifier & smoke recycling system: save space and your workspace
- Lower heating system: more even heating and curing
- Easy to operate: powder shaking, curing, and air purifying in one machine
- Low power consumption: 1100W
- Simple setup: turn the power on and start
- Full tech support: tech videos, direct support messaging through Slack, and more!

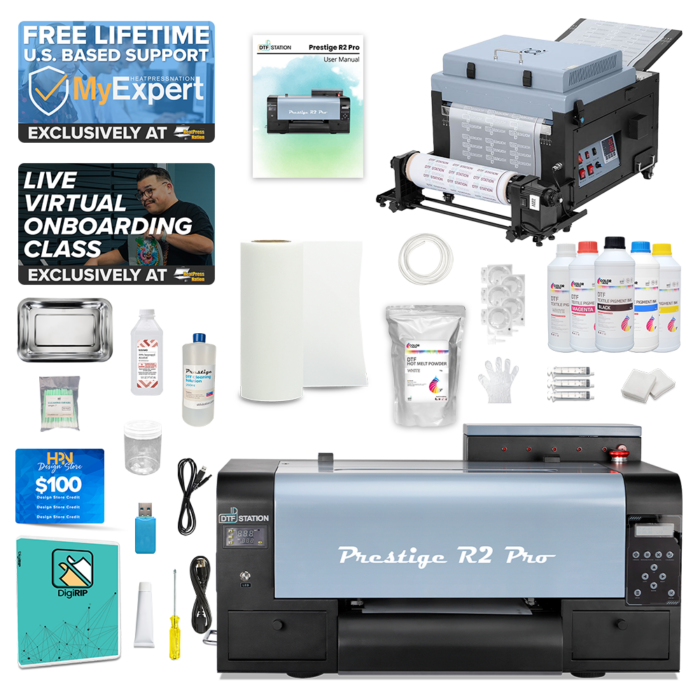

What’s Included:
- DTF Station Prestige R2 Pro DTF Printer
- DTF Station Miro 13 Max DTF Powder Shaker and Dryer
- DigiRIP RIP Software – including fully functional Software Trial Version (15 Day)
- Color Max DTF Pigment Ink (CMYKW) – 1kg (1 each)
- Color Prime Universal DTF Film Roll – A3+ (13″) x 109 yd
- Color Prime Hot Melt Powder – 1kg
- DTF Station Cleaning Solution – 250 ml
- Free Lifetime US-based MyExpert Technical Support
- Live Virtual On-Boarding Class
- 300 Credits to the HPN Design Store
- Isopropyl Alcohol 16oz
- Lintless Wipe 4 x 4 30 Each
- DTF Station 7″ Cleaning Swabs – 50 Each
- Power Cord
- Tools
- Ink Dampers
- Ink Filters
- Ink Tube
- Ink Diverter
- USB Dongle
- Ribbon Cables
- Screws
- Feed roller components
Not Included, but Also Needed:
- Heat Press (used to press final print to garment – 16″ x 20″ recommended)
- Humidifier (to keep the humidity above 50% in the print room)
- Computer with Windows 10 or higher
Upgrading from the A4 model? See the DTF Station Trade-In Program for getting a credit.
Benefits of Direct to Film Transfers:
|
Any Color, Any Material: DTF transfers seamlessly adhere to multiple fabric types, regardless of color. Decorate cotton, nylon, polyester, leather, denim, and more. Unlock a world of vibrant possibilities for your designs! |
|
|
Easy to Use: Heat and pressure are all you need to transfer your designs. No need for pretreatment spray or tricky adhesive sheets. The transfer process is so simple that you can even sell your transfers for customers to apply themselves. |
|
|
Durable: Engineered to withstand the test of time, DTF transfers boast unparalleled durability, ensuring that your designs remain vibrant and intact through countless washes and wears. |
|
|
Soft and Stretchable: DTF transfers offer a silky-smooth touch and unparalleled stretchability, ensuring maximum comfort and freedom of movement with every wear. |
|
|
Long Shelf Life: With proper storage, DTF transfers can last for 1 year or longer. Print your more popular designs ahead of time, and press them on your schedule. |
Specifications:
- Printhead: Dual Epson i1600 print heads
- Mainboard: Honson
- Interface: TCP
- Software: DigiRIP RIP Software (Compatible with Windows Only)
- Max. Film Width: 14.57″ (37 cm)
- Max. Print Width: 13” (33 cm)
- Print Speed: 30-35 sq. ft./hour, Production Level Resolution (720×1200)
- Power Ratings: 700 Watts / 110 Volts / 6.36 Amps
- Machine Weight: 125 lb
- Machine Dimensions: 33.58” x 25.31” x 20.86”
- Shipping Weight: 143 lb
- Shipping Dimensions: 38.18” x 26.38” x 26.38”
- Daily Output: 180 pcs (Based on design size as 12″ x 14″, 8 hrs per day)
Shaker and Dryer Specifications:
- Max Film Width: 13″ (33cm)
- Control Panel: Switch on/off
- Power Consumption: 1.17KW, 10.6A(110V)
- Voltage: 110VAC(10%) 50/60HZ
- Product Weight: 77.16 lbs. / 35kg
- Packaging Weight: 110.23 lbs. / 50kg
- Product Dimensions: 40.03″ D x 22.44″ W x 19.92″ H / 1017*570*506 mm
- Packaging Dimensions: 28.34″ D x 24.40″ W x 19.29″ H / 720*620*490 mm
- Warranty Policy
System Requirements
- Operating System: Windows
- Minimum RAM: 8GB
- Minimum CPU: Intel i5 2.6GHz
- Minimum Free Storage: 5GB
WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a Fume Extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment – over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.
DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.
===
tab_instructions
Prestige R2 Pro Manual
===
tab_warranty
The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product’s life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they’ll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, DTF Station, the manufacturer, offers a conditional 1-Year warranty on up to 2 printheads. Full printhead warranty policy. For warranty claims, we may need to involve the official DTF Station team depending on the reported issue. Be aware that the use of non-DTF Station ink, film, or other supplies will void the warranty. Details depend on training option selected. Terms & Conditions apply. Visit link for full details.
