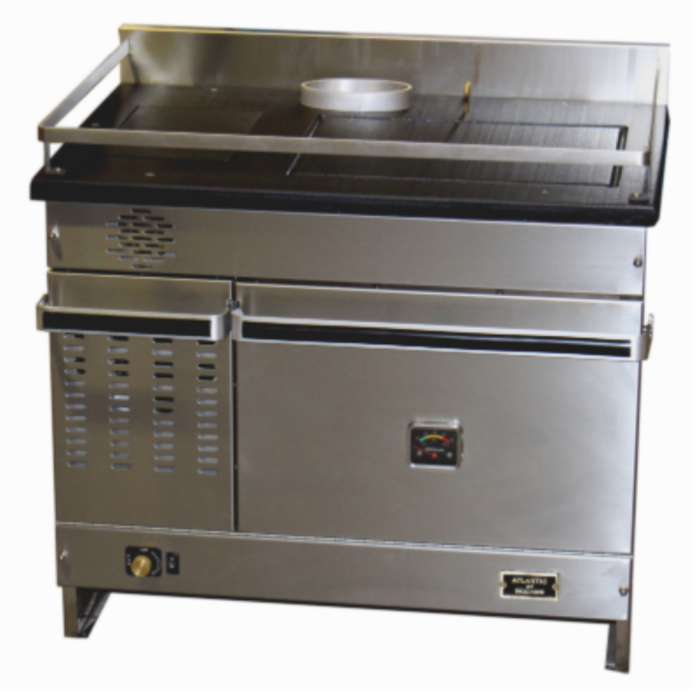

Dickinson Marine – Atlantic Diesel Cook Stove

This Dickinson Marine will start shipping in late October

Atlantic Diesel Cook Stove by Dickinson Marine

The Atlantic Cook Stove is ideal for larger vessels 45-60ft. This larger model is also equipped with a bigger natural draft diesel burner. The stoves cooking capacity can serve a crew of 6-8. Heat output is 30-50% greater than any of the smaller stoves.

  • Requires 5” diameter chimney parts.
  • Minimum 6ft or maximum 8ft of the chimney is required, a straight run with no elbows works best.
  • Chimneys 6ft or longer we highly recommend a barometric damper.
  • Permanent fresh air vent needed in the area of the unit.
  • Creates a dry heat to dry out the moisture inside the vessel.
  • In sailboat installations, this unit must face fore or aft, if facing port or starboard is desired, the valve would need to be mounted to the side of the unit so the gravity-fed valve won’t starve the burner on heels up to 15 degrees
  • 12v draft assists fan included (can be converted to 24v and 32v). Used for start-up and draft assistance on a high fire.

        • Fan Wiring Diagram

      • The valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil.
      • 1 turn hot water coil for 5-10 gal or a 2 turn hot water coil for 15-20 gal can be installed for water heating
      • Width: 30.5″
      • Height: 28.75″
      • Depth: 23”
      • Weight: 189 lbs
      • Oven Size: W16” X D14.5” X H12”
        • Fuel Consumption / 24hr:
          • 1.89 gal LOW
          • 4.50 gal HIGH
        • Heat Output:
          • Low: 8125 BTU
          • High: 24375 BTU

        Check out all of our Dickinson Marine Stoves and Heaters here.
